Ganpathy Alloy Castings
An ISO 9001 : 2008 Certified Company
Mfrs. Of: DPIC Chill Rolls, Adamite Rolls, Definite Shafted Rolls, S.G. Iron Rolls, Indefinite Chill Rolls, Forged Rolls. Bearing Chowks for Automatic & Semi Automatic Steel Re-Rolling Mills

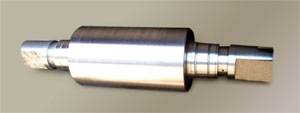

Double Poured Indefinite Chill Roll (DPIC)
We produce double pour indefinite chill roll by centrifugal casting. Which is an innovated casting method. With this casting roll remain free from Pin holes an cracks. The surface of these roll give uniform hardness and deep hardness, which is indispensable for the high quality chill roll.
| Hardness | C | Mn | Si | P | S | Ni | Cr | Mo |
|---|---|---|---|---|---|---|---|---|
| 65-70 | 3.00/3.20 | 0.60/0.80 | 1.00/1.60 | 0.11 MAX | 0.11 MAX | 1.50/1.80 | 0.80/1.20 | 0.20/0.25 |
| 70-75 | 3.00/3.20 | 0.60/0.90 | 1.00/1.60 | 0.11 MAX | 0.11 MAX | 2.00/2.50 | 0.80/1.20 | 0.25/0.30 |
| 75-80 | 3.20/3.50 | 0.60/0.90 | 0.70/1.10 | 0.10 MAX | 0.050 MAX | 2.50/3.00 | 1.60/1.90 | 0.30/0.40 |
